Description

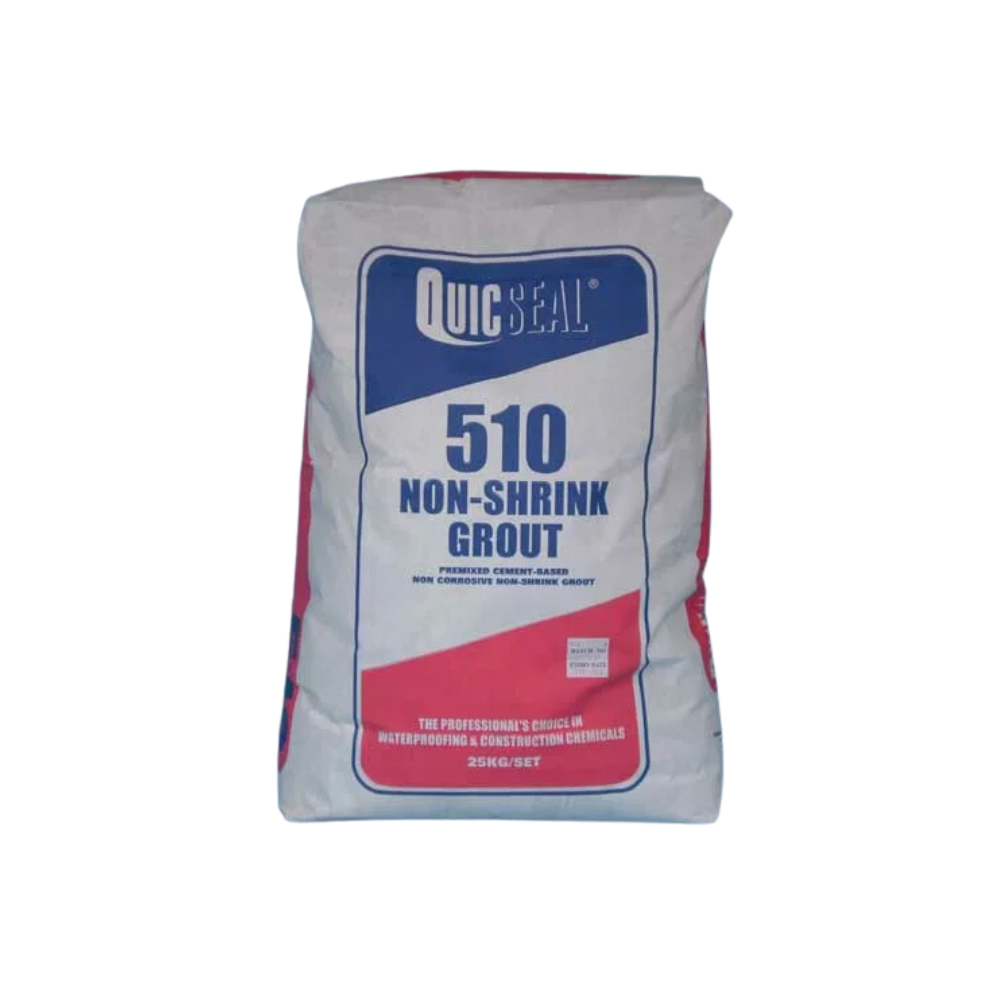

QUICSEAL 510 Grout is a supplied as ready to use cementitious non-shrink grout specially formulated to suit various purposes. QUICSEAL 510 is non-metallic and chloride free and is easy to use, requiring addition of water to produce a free flowing non-shrink grout.
Uses
QUICSEAL 510 can be used in plastic or flowable consistency states in the following applications:
- Bedding bearing plates
- Precast applications – bedding precast units such as walls, slabs and refuse chutes and filling of precast joints and gaps.
- Small patch repairs
TECHNICAL DATA QUICSEAL 510
Application
Surface Preparation
All surfaces must be clean and sound and free from all surface laitance, oil and grease. All defective concrete should be removed till sound concrete is detected.
Saw cut the repair locations to a depth of at least 10 mm to provide a square edge and to avoid feather-edging. Break out the complete repair area to a minimum depth of 10 mm up to the sawn edge.
Expose fully any corroded steel in the repair area and remove all loose scale and corrosion deposits by using hand held grinding tools. Steel should be free from contaminants and any foreign matters that may inhibit adhesion.
The substrate should be dampened with water or primed with QUICSEAL bonding agent or adhesive slurry.
Coverage / Yield
| Consistency | Required Volume of water | Yield / bag |
| Flowable | 4.3 – 4.5 litres | 13.5 litres |
| Semi-Precast (Trowellable) | 3.3 – 3.5 litres | 12.0 litres |
Packaging
Pack size : 25kg
